Equipment Information

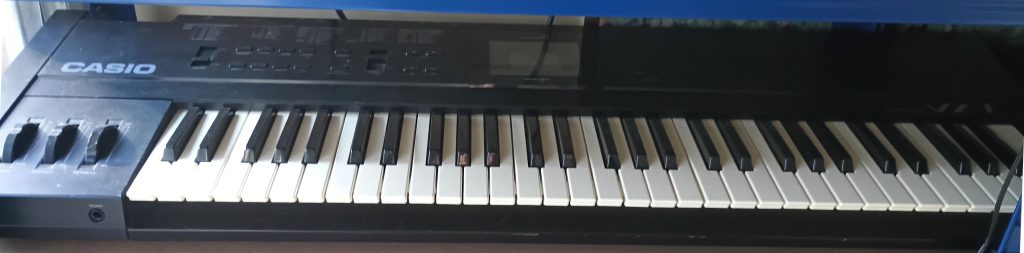

As being one of the synthesizers in my collection, here follows some music production equipment information about Casio VZ-1 phase distortion synthesizer’s capabilities.
Overview
The Casio VZ-1 (1988-1991) is a 61-key digital synthesizer using Interactive Phase Distortion (iPD) synthesis (similar to FM), offering 16-voice polyphony, 8 operator modules per voice, velocity/aftertouch sensitivity, and 8-stage envelopes for deep sound design, featuring a graphical LCD, MIDI I/O, and performance wheels for complex, versatile sounds without built-in effects or sequencers.
Key Specifications
- Synthesis Type: Interactive Phase Distortion (iPD).
- Polyphony: 16 Voices.
- Multitimbral: 8 Parts.
- Keyboard: 61 Synth-Action keys, Velocity & Pressure Sensitive.
- Oscillators: 8 iPD Modules (4 pairs).
- Waveforms: Sine, Saw, Noise.
- Envelopes: 9x 8-stage (8 Amp, 1 Pitch).
- LFOs: 2 for Tremolo/Pitch.
- Display: Graphic LCD.
- Memory: 64 Preset Patches, 64 User Patches, 64 Operation Memories.
- Connections: MIDI In/Out/Thru, Headphone, Sustain Pedal, Volume Pedal, Footswitch.
- Performance Controls: Pitch Bend Wheel, 2 Assignable Wheels.
- Production: 1988 – 1991.
- Dimensions/Weight: 1060mm (W) x 324mm (D) x 93mm (H), ~12kg (26.5lbs).
Key Features
- Deep Sound Editing: Allows for complex voice architecture and parameter editing.
- Multi-Timbral Performance: Can split and layer sounds across the keyboard.
- No Built-in Effects/Sequencer: Focuses purely on synthesis.
- RC-100 Cartridges: Supports external ROM/RAM cards for more sounds.
Availability
The Casio VZ-1 Phase Distortion synthesizer is no longer in production, but you may find it in the used marketplaces.
